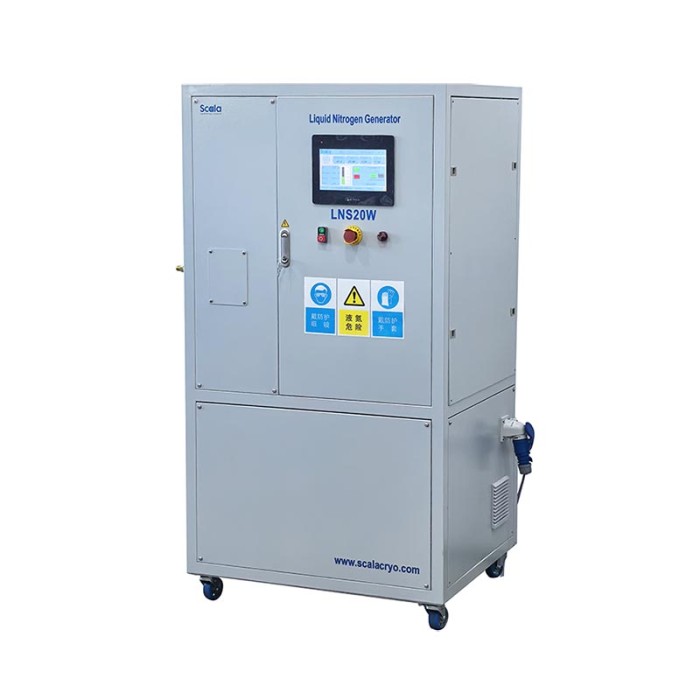

Liquid nitrogen generator, 99.999% purity, 20L/day, 50L tank, PLC, HMI screen, 4G, WiFi, OEM/ODM

Liquid nitrogen generator, 99.999% purity, 20L/day, 50L tank, PLC, HMI screen, 4G, WiFi, OEM/ODM

Liquid nitrogen generator, 99.999% purity, 20L/day, 50L tank, PLC, HMI screen, 4G, WiFi, OEM/ODM
Liquid nitrogen generator, 99.999% purity, 20L/day, 50L tank, PLC, HMI screen, 4G, WiFi, OEM/ODMLiquid nitrogen generator, 99.999% purity, 20L/day, 50L tank, PLC, HMI screen, 4G, WiFi, OEM/ODMLiquid nitrogen generator, 99.999% purity, 20L/day, 50L tank, PLC, HMI screen, 4G, WiFi, OEM/ODM
CategoriesLiquid Nitrogen Generators
BrandScala
ModelLNS20W
ColorOptional
CabinetSteel
Production Capacity≥20L/day (≥0.84L/Hour)
Lead time4-8 weeks
Dimension(L) 90 x (W) 75 x (H) 170cm
Weight370Kg
Update TimeNov 3,2024
Detail Information
Description
20L/day_LN2_Generator_LNS20W
LNS20W - Your On-site Liquid Nitrogen Solution

LNS20W is a plug-and-play liquid nitrogen generator. Controlled by PLC, liquid nitrogen can be produced within several hours at a touch of screen without complicated operation.

Based on advanced pluse tube cryo-cooler technique, the production rate will not be significantly decreased overtime. Combined with our innovative PSA nitrogen system, the generators can be used for many years with minimum maintenance requirement and cost.

With built in capacitance liquid level gauge, you can set liquid level to start/stop automatically on touch screen panel.

Features
Pulse_tube_cryocooler

Advanced Pulse Tube Cryo-cooler, 100,000H life span

high_purity_nitrogen

Innovative PSA High Purity Nitrogen Generator

C-Stic_liquid_level_sensor

Build-in 35L Dewar with Liquid Level Indicator

Nitrogen_purification

Filtration System only Clean LN2 Liquified

10''_HMI_touch_screen

10'' HMI Color Screen, Remote Access and Control

emergency_stop

Emergency Stop Button to Ensure Safty Operation

VEDIO
Competitive Advantages
  • Easy Operation: One-click start/stop liquid nitrogen generation; One-click to dispense liquid nitrogen automatically; Compact machinery and installation free.
  • On-Site Production: Plug-and-play, eliminating the need for storing or transporting ensures a continuous and reliable nitrogen supply.
  • High Purity: 99.5% to 99.999%, suitable for a wide range of industrial and laboratory applications.
  • Safe and Reliable: No helium compressor or refrigerant compressor means no gas leakage risk.
  • Minimal Maintenance: Advanced pluse tube cryo-cooler, over 120,000 hours continuous running without interruption.
  • Cost Effective and Environmental: Modern PSA systems minimize energy consumption results in lower operating costs and environmental impact.
  • Small Footprint: Easily transported or relocated, portable at different job sites, offering greater flexibility in operations.
  • Intelligent: HMI touch screen with WiFi function, enables remote control and monitor; PLC control, automatic produce and standby according to liquid level.
Technical Data
MODEL
LNS10W
Production Rate
≥20L/day (≥0.83L/Hour)
Liquid N2 Pressure
0-1bar
Liquid N2 Dewar Capacity
50L
Operating Temperature
+5℃ ~ +32℃
Nitrogen Purity
99.5-99.999%
Maintenance Interval
>100,000Hours
Noise Level
<60dBA @1Meter
Power Consumption
2.8Kw
Electrical Supply
220V/1PH/50Hz
Maximum Altitude
3,000M
Dimension
(L) 90 x (W) 75 x (H) 170cm
Approximate Weight
370Kg
