Home / Biobanking Solution

Biobanking

What Is A Biobank

Biobanking encompasses the collection, processing, storage, and distribution of biological samples, such as blood, tissues, or DNA, and associated data for research, diagnostics, or therapeutic development. Biobanks typically store thousands to millions of biological specimens, depending on their scope, research focus, and institutional capacity.Automated biobanking systems help improve throughput, maintain high-quality sample integrity, and streamline critical processes like automated aliquoting, storage, and sample retrieval.For small-scale biobanks located in remote areas or on islands, the lack of modern automated storage systems or their impracticality means that staff must frequently purchase liquid nitrogen and manually replenish the liquid nitrogen storage tanks. This poses not only safety risks and may also lead to issues of liquid nitrogen shortages.

Liquid Nitrogen Refill

Challenges for Small-Scale Biobanks

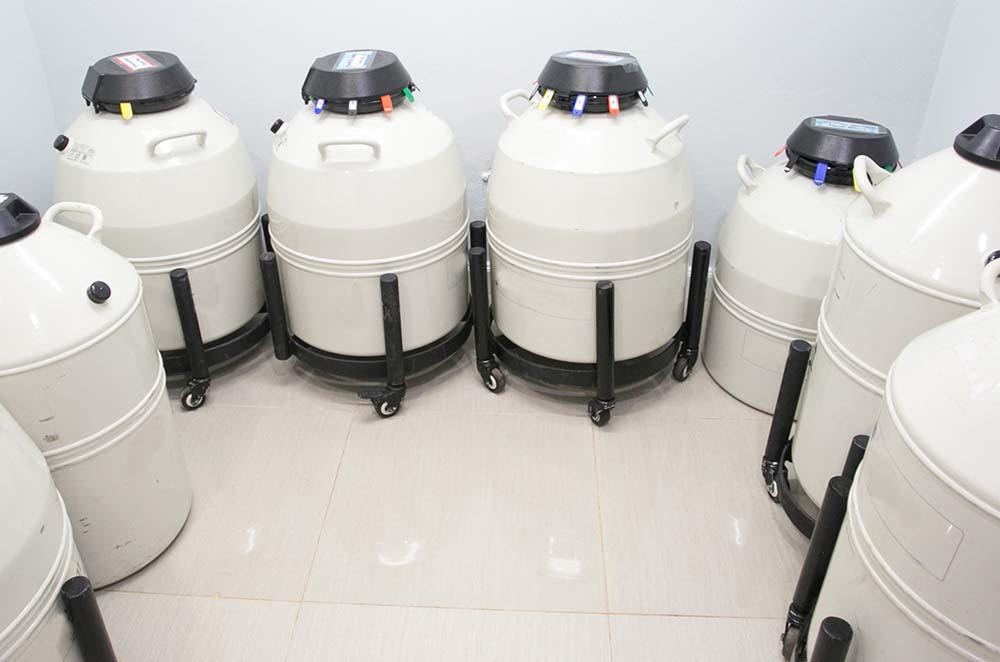

Liquid Nitrogen Shortage

For biobanks in remote or island locations, the lack of local, low-cost air separation units makes liquid nitrogen a scarce commodity, forcing them to import it from elsewhere.

Expensive & Continuous Investment

As liquid nitrogen is some kind of consumbles, bio-bank runners have to invest large liquid nitrogen towers and continuously buy liquid nitrogen with high price to replenish the sample tank.

Monitor and LN2 Refill

Even though they have liquid nitrogen, liquid nitrogen level monitor and regular liquid nitrogen refill to sample tanks also cost much energy and time for staff workers.

Sample & Staff Safety Conerns

Constant manual refilling not only poses risk of liquid nitrogen bite to human body of staff memberes, but also put bio-samples in risks of contamination and result in higher LN2 loss.

Auto Liquid Nitrogen Refilling Solution

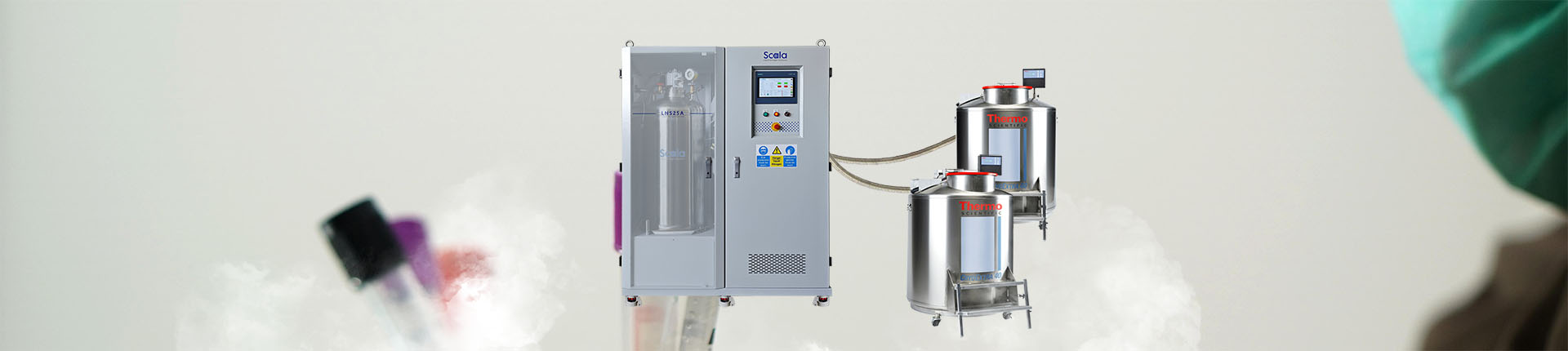

Auto LN2 Refilling to 2x Thermo CryoExtra 20 with LNS25A

Take the 30,000 2ml vials capacity tank (under gas phase) for example, initial liquid nitrogen refilling volume is 135 liters. Evaporation rate 6~7 liters per day, it can work 20 days without refilling. We can set 7-day auto refilling frequency for best performance, that's 50~60 liters every time considering the loss per unit.

biobank auto liquid nitrogen production & refill_biobanking_biobanks_bio-specimen_bioscience

25L/Day Liquid Nitrogen Generator LNS25A

LNS25A produces 25 liters liquid nitrogen every day with 100-liter inbuilt dewar. To make the best use of the liquid nitrogen generator, it can refill 2x Thermo CryoExtra 20 Systems with this same LNS25A - 3.5 days for tank A, another 3.5 days for tank B.

The auto refilling process (tank A & B connect LNS25A with 2x 1.5~2.0 meter vacuum insulated hoses):

1. Tank A gives singals 24 hours before hand to LNS25A to make sure it has enough liquid nitrogen with perfact pressure;

2. When it's time both sides turn on solenoid valves and liquid nitrogen flows towards the tank; the tank senses the temperature and only when it is -196℃ liquid nitrogen it opens another inlet valve to make sure no hot nitrogen gas flows into the tank;

3. When liquid nitrogen level reaches to the high point, tank A gives signals to LNS25A and both sides turn off the solenoid vavles; we will install a safety valve at end of the vacuum insulated hose to make sure the gasous liquid nitrogen inside won't demage the hose;

4. LNS25A continues its working to produce liquid nitrogen for refilling tank B.

Liquid Nitrogen Backup for Emergency

Thanks to the liquid nitrogen production rate of LNS25A and its big in-built dewar, we can have extra liquid nitrogen (120~180 liters every month in perfact condition) which we can store in external self-pressuring tanks for emergency.
