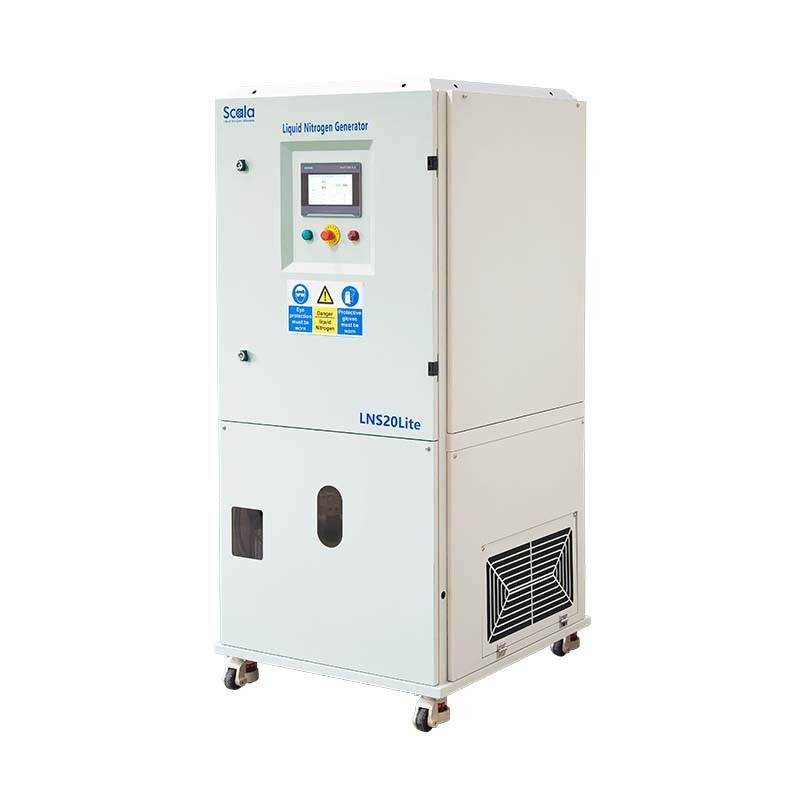

GM Coldhead Compact Air-cooled 20L 25L Liquid Nitrogen Generator
Detail Information
LNS20A-Lite, a premium liquid nitrogen generator from Scala, is a fully integrated system engineered to provide an efficient and reliable on-site liquid nitrogen supply. Its all-in-one design incorporates a built-in oil-free air compressor, a Pressure Swing Adsorption (PSA) nitrogen generator, a Gifford-McMahon (GM) cryocooler, and a 50-liter vacuum-insulated dewar.
The system generates high-purity nitrogen gas (99.5–99.99%) through the PSA process, which is then liquefied by a GM cryocooler mounted directly on the dewar. Unlike conventional liquefaction systems, this innovative configuration eliminates nitrogen venting during operation, significantly reducing nitrogen losses and energy consumption. The compact integrated design minimizes installation space requirements while enhancing operational safety and reliability, making the LNS20A-Lite an ideal solution for laboratories, research institutions, and industrial users requiring a dependable on-site source of liquid nitrogen.
Key Features
· LN2 Production Rate: 25L/Day
· Nitrogen Purity: 99.5%~99.9%
· In-built Dewar Volume: 50 liters
· Noise Level: 65 dB(A) @ 1 meter
· Operation: Auto Running and Auto Standby
· Liquefaction Technology: GM Cryocooler
· Helium Compressor: Air-cooled
· Controller: Siemens PLC + 7'' HMI
· Liquid Nitrogen Dispense: HMI Interfact + Stop Valve
· Remote O&M Platform: Siemens SIMICAS®

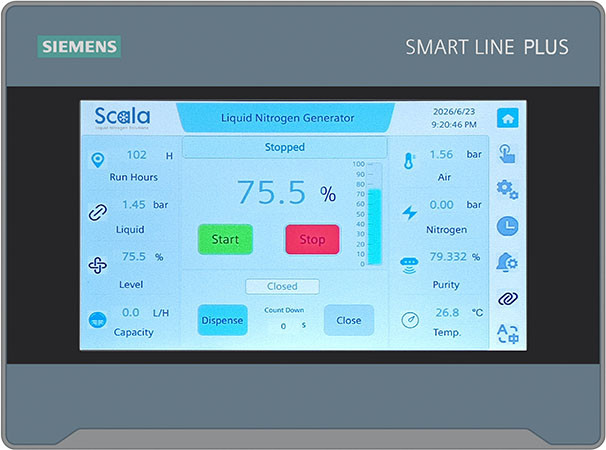

7'' Siemens® HMI Displaying Key Running Data
The 7-inch Siemens® touchscreen HMI provides an intuitive user interface for monitoring and controlling the system. Key operating parameters, including liquid nitrogen level, nitrogen purity, pressures, temperatures, and system status, are displayed in real time, enabling convenient operation and rapid diagnostics.
· Real-time liquid nitrogen productoin rate display
· Real-time nitrogen purity display
· Nitrogen & air pressure display
· Touch screen liquid nitrogen dispense with quantative & time control
· GM Cryocooler & helium compressor running status display

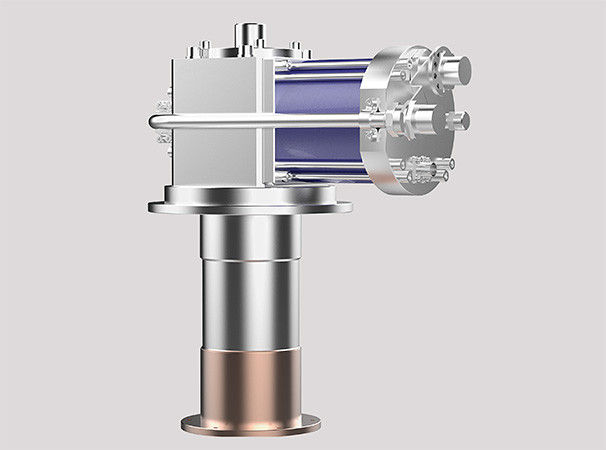

Proven GM Cryocooler Technology
As the only cryogenic refrigeration technology to achieve large-scale commercial adoption, the GM cold head is directly mounted on the 50-liter vacuum-insulated dewar, enabling nitrogen gas to be liquefied within the vessel without external transfer lines. This innovative configuration eliminates pipe frosting and cold gas venting, while improving operational safety, system reliability, and ease of use in laboratory environments.
· Commercially proven GM cryocooler technology with over 50 years of field validation
· Eliminates pipe frosting and nitrogen venting
· High reliability, low maintenance, and long service life
· CE certified; selected models also UL certified
· Designed for continuous 24/7 operation
· 15,000-hour maintenance interval

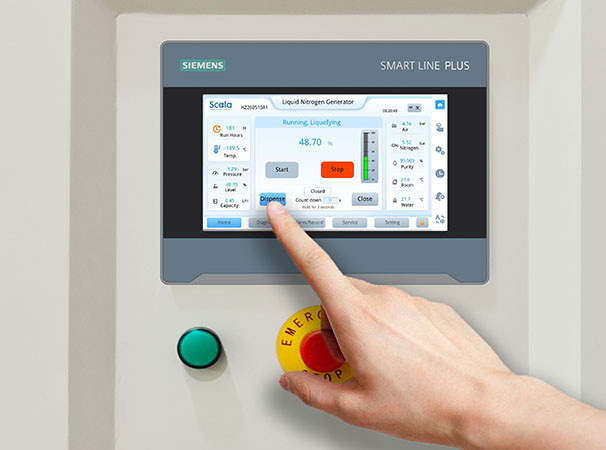

HMI + Stop Valve for Safety Dispensing
The LNS20A-LITE enables safe and uninterrupted liquid nitrogen dispensing without stopping production or pressurizing the building, ensuring maximum operational convenience through an intuitive HMI interface combined with a manual stop valve for controlled safety release.
It features a two-step dispensing mechanism for enhanced safety: users must first unlock dispensing via the touchscreen HMI, and then manually operate the stop valve to initiate flow. Dispensing time can be preset through the control system, with automatic shutoff for precise, safe, and flexible LN₂ withdrawal.

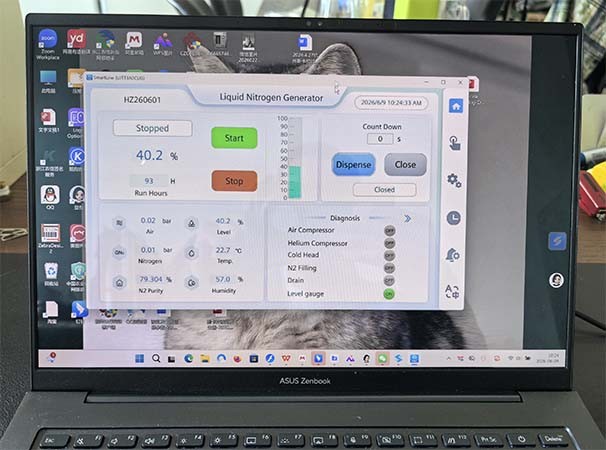

SIMICAS® Remote Device O&M Platform
Powered by the SIMICAS® Remote O&M Platform, the LNS20A-Lite delivers smart, connected operation with real-time monitoring, fault alerts, historical data analysis, and remote technical support. By enabling predictive maintenance and rapid troubleshooting, SIMICAS® helps ensure maximum system availability and lower lifecycle operating costs.
· Monitor system status and operating parameters in real time
· Quickly identify and troubleshoot system issues, reducing downtime
· Deploy firmware and control program updates remotely for the latest features
· Connect directly with Scala engineers for timely technical assistance
Specifications
Machine Model: LNS20A-LITE
Liquid Nitrogen Output | 25 liters per day |
Liquid Nitrogen Purity | 99.5-99.9% |
In-built Dewar Volume | 50 Liters |
Air Compressor | In-built oil-free air compressor |
Nitrogen Generator Type | PSA Nitrogen Generator |
Cryo-cooler Type | Gifford-McMahon (GM) Coldhead |
Helium Compressor Cooling Type | Air-cooled |
Voltage | 220V-1Ph-50/60Hz |
Controller | PLC |
PLC Brand | Siemens |
Screen | Color 7'' HMI |
Noise | <65 dB(a) @ 1 meter |
Automatic Running | Yes |
Automatic Standby | Yes |
Liquid Nitrogen Dispensing | Touch Screen Dispensing |
WiFi Connection | Yes |
Remote Control | Yes |
Lot Function | Yes |
Dimension | 81x84x182cm |
Weight | 420kg |
Cooling Water Requirement | No |
Place of Origin | Hangzhou, China |
Mobility | Yes |
Lead Time | 2 Months |
Machinery Test Report | Yes |
Quality Assurance | Yes |
