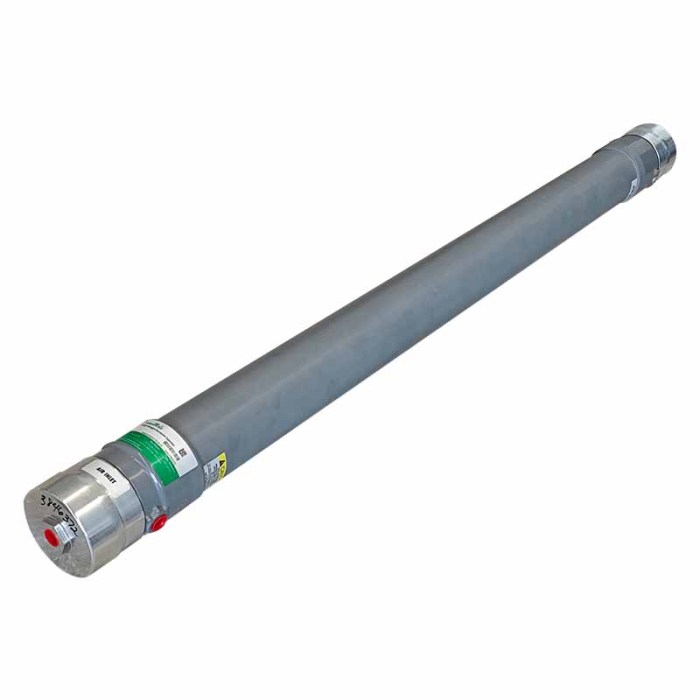

PRISM® PA4050-P3 Nitrogen Membrane Separator Module
Detail Information
Description
The PRISM® PA4050-P3 is a high-performance hollow-fiber membrane separator designed for on-site nitrogen generation from compressed air. Utilizing Air Products' advanced P3 selective membrane technology, the module efficiently separates nitrogen from oxygen, water vapor, carbon dioxide, and other trace gases, delivering a continuous supply of clean, dry nitrogen without moving parts or chemical consumables.
The P3 membrane fiber offers exceptionally high nitrogen recovery, requiring significantly less compressed air compared with conventional membrane technologies. This makes the PA4050-P3 an ideal solution for applications where compressor capacity, energy consumption, or installation space is limited.
Designed for reliable long-term operation, the PA4050-P3 features a robust membrane construction and can produce nitrogen purities ranging from 95% to 99.5%, depending on operating conditions. The module contains no moving components, resulting in minimal maintenance requirements and excellent operational reliability.
Specifications
· Model No.: PA4050-P3
· Gas Type: Nitrogen (N2)
· Flow Rate: 6.6 m3/hour @ 97% (9 barg)
· Purity: 95% ~ 99.5%
· Typical Operating Pressure: 5 ~ 15 barg
· Max. Operating Pressure: 26.5 barg
· Operating Temperature: 5°C ~ 55°C
· Max. Operating Temperature: 65.6°C
· Shell Material: High performance ABS / 316L Stainless Steel
· Cap Material: 6061-T6 Aluminum / 316L Stainless Steel
· Weight: 20.5 lb (9.3 kg)
· Dimension: 1629 mm x Ø127 mm (64.13'' x 5.0'')
Performance Data
PRISM PA4050-P3 membrane separators production rate varies under different working conditions and nitrogen purity requirements.
Nitrogen Flow (Nm3/hr) / Feed Air Flow (Nm3/hr) | ||||||
Pressure | 99.5 | 99.0 | 98.0 | 97.0 | 96.0 | 95.0 |
9 BARG | 2.9/10.6 | 3.8/11.7 | 5.3/13.4 | 6.6/14.9 | 8.0/16.5 | 9.5/18.1 |
15 BARG | 5.5/18.6 | 7.3/20.6 | 10.1/23.9 | 12.7/26.8 | 15.3/29.8 | 18.1/32.8 |
* Operating temperature 55°C.
* Performance listed is typical for a single membrane separator.
Dimensions and Variation Modeles
The most common variation modeles of PA4050-P3 are listed as followings.
Please contact us for other models with different purity requirements and port size.
| A | B | C | E | F | G |
| 4.92'' (125.0 mm) | 5.0'' (127.0 mm) | 1.62'' (41.1 mm) | 4.34'' ±.06 (110.2 ± 1.5 mm) | ½'' NPT | 4.50'' (114.3 mm) |
| Part No. | Model No. | D | H | L | Weight |
| 107137 | PA4050-P3-4A-D0 | ½'' NPT | 49.12'' (1248 mm) | 64.14'' (1629 mm) | 20.6 lb (9.3 kg) |
| 107016 | PA4050-P3-6B-D0 | ¾'' BSPP | 49.12'' (1248 mm) | 64.14'' (1629 mm) | 20.6 lb (9.3 kg) |
| 107017 | PA4050-P3-7C-D0 | ⅞'' SAE | 49.12'' (1248 mm) | 64.14'' (1629 mm) | 20.6 lb (9.3 kg) |
