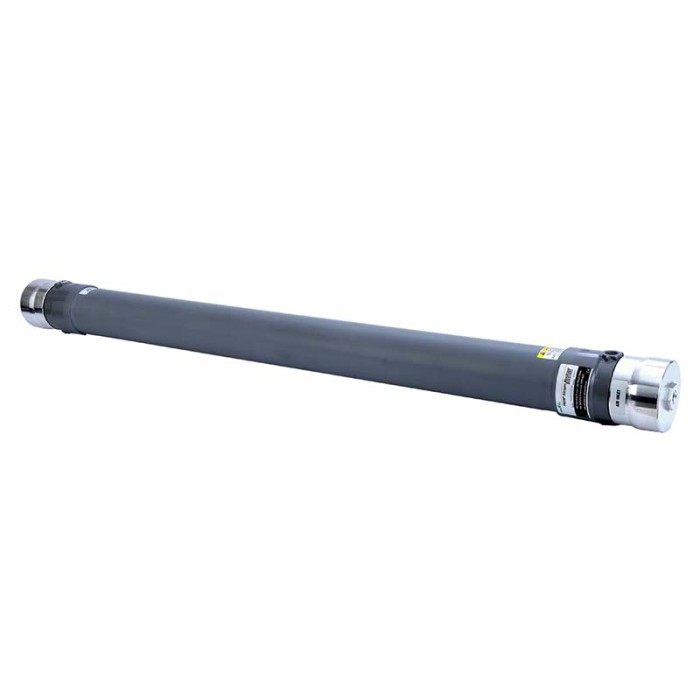

PRISM® PA4050-N1 Nitrogen Membrane Separator Module
| Share | |
|---|---|
| Categories | PRISM Nitrogen Membrane |
| Brand | Scala |
| Model | PA4050-N1 |
| Brand | PRISM |
| Working Pressure | 5~15 barg |
| Maximum Operating Pressure | 20 barg |
| Operating Temperature | 5~55℃ |
| Maximum Operating Temperature | 65.5℃ |
| Nitrogen Purity | 95% ~ 99.5% |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Update Time | Feb 28,2026 |
Detail Information
Description
The PA4050-N1 separator is manufactured from high-performance ABS which can withstand some of the most grueling environments. Many of our separators see service cycles longer than ten years of continuous operation.
PRISM PA4050-N1 enable you to make nitrogen enriched air out of normal pure ambient air with nitrogen gas flow rate 7.5 m3/hour @ 97% purity at 7 barg condition. Air is composed of nitrogen (78,1%), oxygen (20.9%), argon (1%) and some traces of other inert noble gasses. PRISM PA4050-N1 membrane separators are capable of separating oxygen from air, thus producing nitrogen enriched air.
Specifications
· Model No.: PA4050-N1
· Gas Type: Nitrogen (N2)
· Flow Rate: 7.5 m3/hour @ 97% (7 barg)
· Purity: 95% ~ 99.5%
· Typical Operating Pressure: 5 ~ 15 barg
· Max. Operating Pressure: 26.5 barg
· Operating Temperature: 5°C ~ 55°C
· Max. Operating Temperature: 65.6°C
· Shell Material: High performance ABS
· Cap Material: 6061-T6 Aluminum
· Weight: 20.5 lb (9.3 kg)
· Dimension: 1629 mm x Ø127 mm (64.13'' x 5.0'')
Performance Data
PRISM PA4050-N1 membrane separators production rate varies under different working conditions and nitrogen purity requirements.
Nitrogen Flow (Nm3/hr) / Feed Air Flow (Nm3/hr) | ||||||
Pressure | 99.5 | 99.0 | 98.0 | 97.0 | 96.0 | 95.0 |
5 BARG | 1.7/12.3 | 2.4/13.1 | 3.6/14.5 | 4.7/15.7 | 5.8/16.9 | 7.0/18.2 |
7 BARG | 2.8/17.8 | 4.0/19.1 | 5.8/21.2 | 7.5/23.1 | 9.3/25.0 | 11.2/27.1 |
9 BARG | 4.0/23.3 | 5.5/25.1 | 8.1/28.0 | 10.5/30.7 | 12.9/33.4 | 15.5/36.2 |
12 BARG | 5.7/31.7 | 8.0/34.2 | 11.6/38.4 | 15.0/42.2 | 18.5/46.1 | 22.2/50.1 |
15 BARG | 7.5/40.1 | 10.4/43.4 | 15.2/48.9 | 19.7/53.9 | 24.2/58.9 | 29.1/64.2 |
* Operating temperature 55°C.
* Performance listed is typical for a single membrane separator.
Dimensions and Variation Modeles
The most common variation modeles of PA4050-N1 are listed as followings.
Please contact us for other models with different purity requirements and port size.
| Part No. | Model No. | Connection | Width | Length | Weight |
| 150555 | PA4050-N1-4A-00 | ½'' NPT | 5.0'' (127 mm) | 64.13'' (1629 mm) | 20.5 lb (9.3 kg) |
| 161932 | PA4050-N1-6B-00 | ¾'' BSPP | 5.0'' (127 mm) | 64.13'' (1629 mm) | 20.5 lb (9.3 kg) |
| 161933 | PA4050-N1-7C-00 | ⅞'' SAE | 5.0'' (127 mm) | 64.13'' (1629 mm) | 20.5 lb (9.3 kg) |
