Nitrogen Membrane HiFluxx DT604 3.9 m3/hr at 7 bar - 97% purity
Nitrogen Membrane HiFluxx DT604 3.9 m3/hr at 7 bar - 97% purity
| Categories | Parker Nitrogen Membrane Modules |
|---|---|
| Brand | Scala |
| Model | DT604 |
| Brand | Parker |
| Product Series | HiFluxx |
| Working Pressure | 0~13 barg (0~189 psig) |
| Maximum Operating Pressure | 13 barg (189 psig) |
| Operating Temperature | +2℃ to +50℃ (+36°F to +122°F) |
| Maximum Air Inlet Temperature | 50 °C, 122 °F |
| Nitrogen Purity | 90% - 99.5% |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Download |  |
| Update Time | Jun 12,2025 |
Detail Information
Description

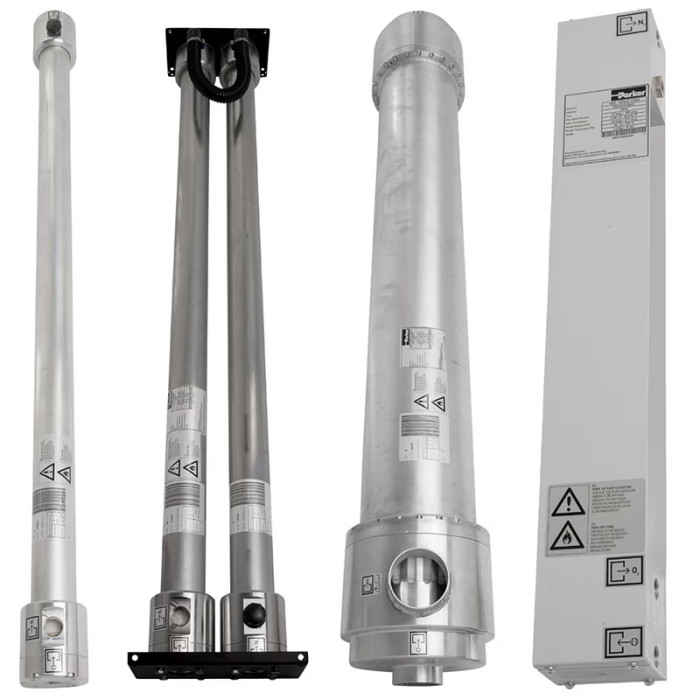

Parker HiFluxx DT604 nitrogen membrane modules are designed to separate nitrogen gas from compressed air. The hollow-fibre Nitrogen membrane modules produce nitrogen gas from compressed air to offer a cost-effective, real time nitrogen supply.
Nitrogen membrane modules enable you to make nitrogen enriched air out of normal pure ambient air. Air is composed of nitrogen (78,1%), oxygen (20.9%), argon (1%) and some traces of other inert noble gasses. Parker DT604 membrane modules are capable of separating oxygen from air, thus producing nitrogen enriched air.
Specifications
· Model no.: HiFluxx DT604
· Gas Type: Nitrogen (N2)
· Flow Rate: 3.9 m3/hour @ 97% (7 bar)
· Purity: 90% - 99.5%
· Part no.: 159.003472 / 159003472
· Max. Oper. Pressure: 13 barg / 189 psig
· Oper. Temperature: +2℃~+50℃ / +36°F~+122°F
· Material: Aluminum
· Inlet/Outlet Port Size: G 3/8''
· Weight: 6 kg, 13.2 lb
Performance Data
The HiFluxx DT604 production rate varies under different working conditions and nitrogen purity requirements.
| Purity % | Nitrogen flow rate in m3/hr | |||||
| 99.5 | 99.0 | 98.0 | 97.0 | 96.0 | 95.0 | |
| 4 bar g | 0.76 | 1.13 | 1.69 | 2.23 | 2.76 | 3.36 |
5 bar g | 0.95 | 1.41 | 2.12 | 2.78 | 3.46 | 4.19 |
6 bar g | 1.19 | 1.77 | 2.67 | 3.35 | 4.37 | 5.27 |
7 bar g | 1.39 | 2.07 | 3.11 | 3.91 | 5.09 | 6.15 |
8 bar g | 1.59 | 2.36 | 3.56 | 4.46 | 5.82 | 7.03 |
9 bar g | 1.75 | 2.63 | 4.03 | 5.30 | 6.60 | 8.00 |
10 bar g | 1.99 | 2.95 | 4.45 | 5.58 | 7.28 | 8.79 |
11 bar g | 2.08 | 3.14 | 4.80 | 6.22 | 7.93 | 9.62 |
| 12 bar g | 2.17 | 3.33 | 5.16 | 6.87 | 8.58 | 10.4 |
Maximum pressure drop at Purity≤5%: <0.8 bar
Maximum nitrogen flow rate = minimum flow rate + 10%
Common Variation Models
The most common variation modeles of Parker HiFluxx DT604 are listed below.
Please contact us for other models with different purity requirements.
| DT604-950-06-A-00A | HiFluxx DT604 95%N2 at 6 bar |
| DT604-950-07-A-00A | HiFluxx DT604 95%N2 at 7 bar |
| DT604-950-10-A-00A | HiFluxx DT604 95%N2 at 10 bar |
| DT604-960-09-A-00A | HiFluxx DT604 96%N2 at 9 bar |
DT604-970-07-A-00A | HiFluxx DT604 97%N2 at 7 bar |
DT604-970-09-A-00A | HiFluxx DT604 97%N2 at 9 bar |
DT604-980-06-A-00A | HiFluxx DT604 98%N2 at 6 bar |
DT604-980-07-A-00A | HiFluxx DT604 98%N2 at 7 bar |
DT604-980-08-A-00A | HiFluxx DT604 98%N2 at 8 bar |
DT604-990-06-A-00A | HiFluxx DT604 99%N2 at 6 bar |
DT604-990-07-A-00A | HiFluxx DT604 99%N2 at 7 bar |
DT604-990-08-A-00A | HiFluxx DT604 99%N2 at 8 bar |
DT604-990-09-A-00A | HiFluxx DT604 99%N2 at 9 bar |
DT604-995-05-A-00A | HiFluxx DT604 99,5%N2 at 5 bar |
DT604-995-06-A-00A | HiFluxx DT604 99,5%N2 at 6 bar |
DT604-995-07-A-00A | HiFluxx DT604 99,5%N2 at 7 bar |
