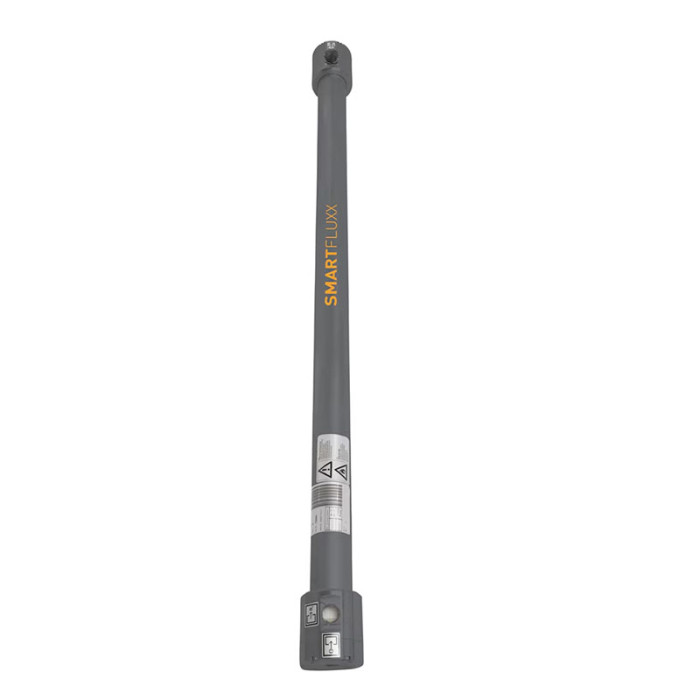

Parker SmartFluxx Nitrogen Membrane SA1508 16.5 m3/hour @ 7 barg - 97% purity
Parker SmartFluxx Nitrogen Membrane SA1508 16.5 m3/hour @ 7 barg - 97% purity
| Categories | Parker Nitrogen Membrane Modules |
|---|---|
| Brand | Scala |
| Model | SA1508 |
| Brand | Parker |
| Product Series | SmartFluxx |
| Working Pressure | 4~10 barg (58~145psig) |
| Maximum Operating Pressure | 13 barg (188psig) |
| Operating Temperature | +2℃ to +45℃ (+36°F to +113°F) |
| Maximum Air Inlet Temperature | 50 °C, 122 °F |
| Oxygen Content | 0.5 to 5 %, 1 to 5 % |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Update Time | Jun 6,2025 |
Detail Information
Description
Nitrogen membrane modules enable you to make nitrogen enriched air out of normal pure ambient air. Air is composed of nitrogen (78,1%), oxygen (20.9%), argon (1%) and some traces of other inert noble gasses. Parker SA1508 membrane modules are capable of separating oxygen from air, thus producing nitrogen enriched air.
The Parker SmartFluxx SA1508 nitrogen membrane modules are designed to separate nitrogen gas from compressed air. This model provides smart solution for nitrogen gas requirements which can be used in a wide range of industries.
Specifications
· Model no.: SmartFluxx SA1508
· Gas Type: Nitrogen (N2)
· Flow Rate: 16.5 m3/hour @ 97% (7 bar)
· Purity: 95% - 99.5%
· Part no.: 159.005246 / 159005246
· Max. Oper. Pressure: 13 barg / 189 psig
· Oper. Temperature: +2℃~+50℃ / +36°F~+122°F
· Material: Aluminum
· Weight: 4kg / 9 lbs
Performance Data
The SmartFluxx SA1508 production rate varies under different working conditions and nitrogen purity requirements.
| Purity % | Nitrogen flow rate in m3/hr | |||||
| 99.5 | 99.0 | 98.0 | 97.0 | 96.0 | 95.0 | |
| 4 bar g | 2.8 | 4.0 | 5.7 | 7.1 | 9.5 | 10.9 |
5 bar g | 3.7 | 5.3 | 7.9 | 10.2 | 12.8 | 15.2 |
6 bar g | 4.7 | 7.0 | 10.2 | 13.0 | 15.7 | 20.5 |
7 bar g | 6.1 | 8.5 | 12.3 | 16.5 | 19.5 | 24.3 |
8 bar g | 6.9 | 9.7 | 14.3 | 20.2 | 23.3 | 28.1 |
9 bar g | 7.8 | 11.1 | 17.0 | 22.2 | 27.0 | 32.2 |
10 bar g | 8.6 | 12.6 | 18.5 | 24.2 | 30.2 | 37.4 |
11 bar g | 9.6 | 14.2 | 20.7 | 27.3 | 33.0 | 41.0 |
| 12 bar g | 10.5 | 15.2 | 22.9 | 29.5 | 36.6 | 45.6 |
13 bar g | 11.3 | 16.3 | 24.9 | 32.0 | 39.5 | 48.8 |
Maximum pressure drop at Purity≤5%: <0.2 bar
Maximum pressure drop at Purity>5%: 0.1 to 0.5 bar
Common Variation Models
The most common variation modeles of Parker SmartFluxx SA1508 are listed below.
Please contact us for other models with different purity requirements.
| SA1508-950-06-A-00A | SmartFluxx SA1508 95% N2 at 6 bar |
| SA1508-950-07-A-00A | SmartFluxx SA1508 95% N2 at 7 bar |
| SA1508-950-08-A-00A | SmartFluxx SA1508 95% N2 at 8 bar |
| SA1508-950-09-A-00A | SmartFluxx SA1508 95% N2 at 9 bar |
SA1508-950-10-A-00A | SmartFluxx SA1508 95% N2 at 10 bar |
SA1508-950-11-A-00A | SmartFluxx SA1508 95% N2 at 11 bar |
SA1508-950-12-A-00A | SmartFluxx SA1508 95% N2 at 12 bar |
SA1508-960-08-A-00A | SmartFluxx SA1508 96% N2 at 8 bar |
SA1508-970-08-A-00A | SmartFluxx SA1508 97% N2 at 8 bar |
SA1508-970-09-A-00A | SmartFluxx SA1508 97% N2 at 9 bar |
SA1508-970-10-A-00A | SmartFluxx SA1508 97% N2 at 10 bar |
SA1508-970-11-A-00A | SmartFluxx SA1508 97% N2 at 11 bar |
SA1508-980-06-A-00A | SmartFluxx SA1508 98% N2 at 6 bar |
SA1508-980-07-A-00A | SmartFluxx SA1508 98% N2 at 7 bar |
SA1508-980-08-A-00A | SmartFluxx SA1508 98% N2 at 8 bar |
SA1508-980-11-A-00A | SmartFluxx SA1508 98% N2 at 11 bar |
SA1508-990-08-A-00A | SmartFluxx SA1508 99% N2 at 8 bar |
SA1508-995-05-A-00A | SmartFluxx SA1508 99,5% N2 at 5 bar |
SA1508-995-07-A-00A | SmartFluxx SA1508 99,5% N2 at 7 bar |
