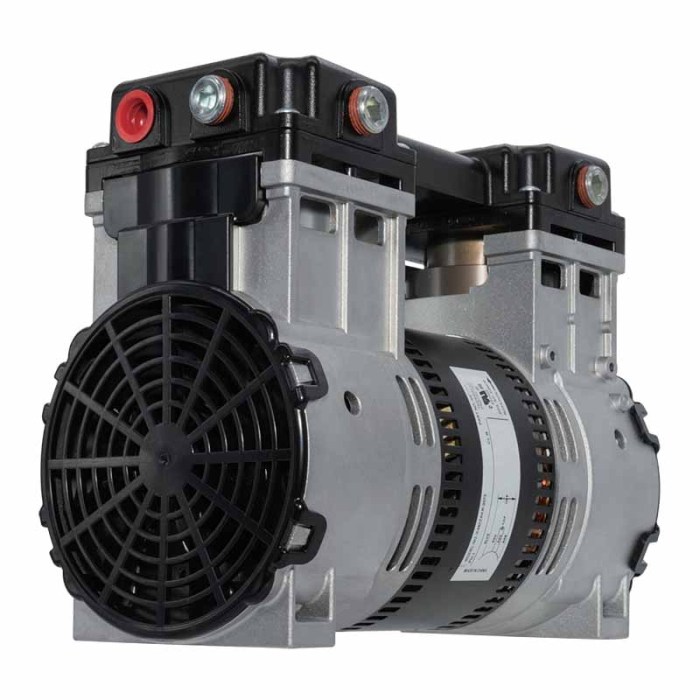

GAST 88R552 Oil-free Rockingpiston Compressor for Nitrogen Generator
| Share | |
|---|---|
| Categories | Nitrogen Generator |
| Brand | Scala |
| Model | 88R552-P401-N472NX |
| Brand | GAST |
| Max pressure | 12 bar (175 PSI) |
| Air flow @ 10bar | 45 LMP @ 50Hz / 51 LMP @ 60Hz |
| Rate voltage | AC 220-230V, 50Hz / 220-230V, 60Hz |
| Power | 0.53 @ 50Hz / 0.62 @ 60Hz |
| Normal ambient | 0~40℃ |
| Noise | ≤70dB(A) |
| FOB port | Shanghai, Ningbo, Guangzhou, Qingdao |
| Terms of Payment | T/T |
| Download |  |
Detail Information

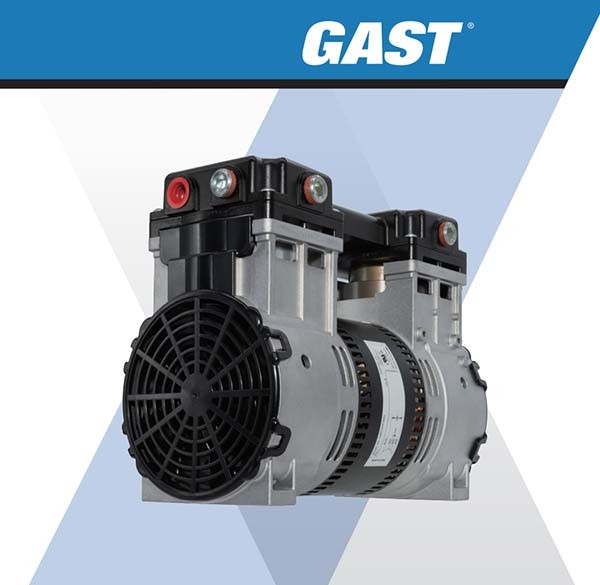

INTRODUING
GAST 88R Oil-less
Rocking Piston Compressor
Powerful, Quiet, Reliable
The GAST 88R was engineered for performance across the board air flow, sound reduction, and longevity.
It provides more air flow while reducing sound levels vs. the 71R555. It also boasts an impressive 16,000 hours of bearing life and 6,000 hours of cup life.
POWERFUL PERFORMANCE
The 88R delivers impressive performance -70LPM and a maximum pressure of 175 psi.
EXTREME DURABILITY
The 88R is built to last with 16,000 hours of bearing life and 6,000 hours of cup life.
QUIET OPERATION
The 88R builds on GAST's reputation for quiet performance by comparing with other high pressure air compressor on the market.
DEPENDABLE DELIVERY
The 88R minimizes supply chain constraintswith a streamlined design optimized aroundreadily available internal components.

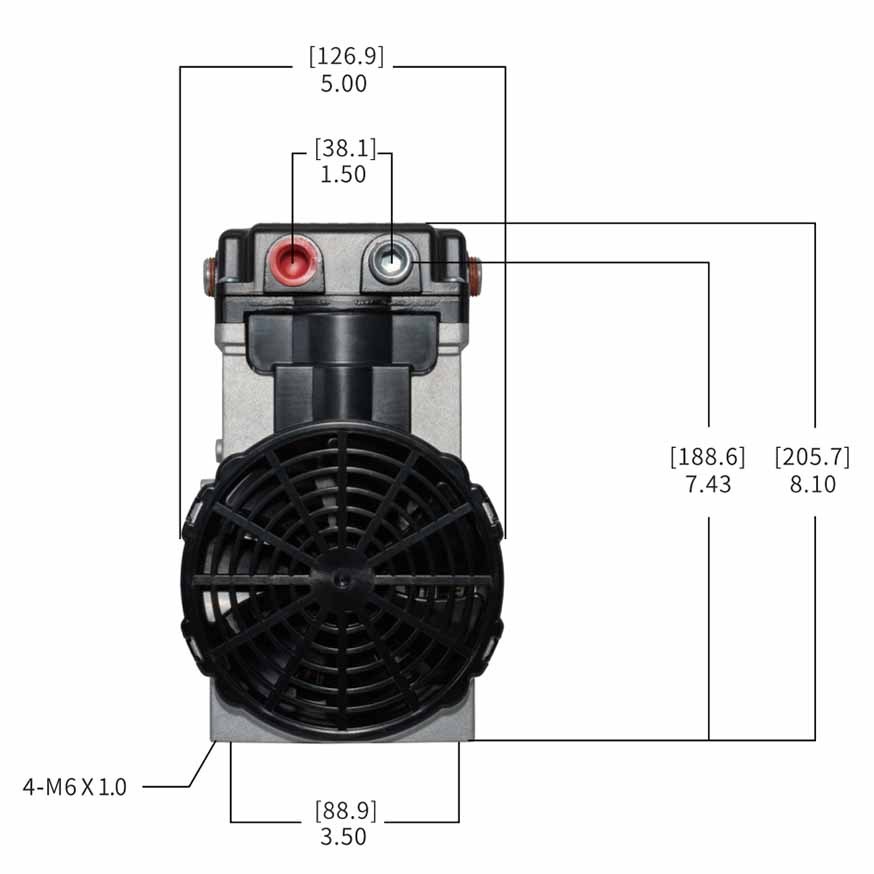

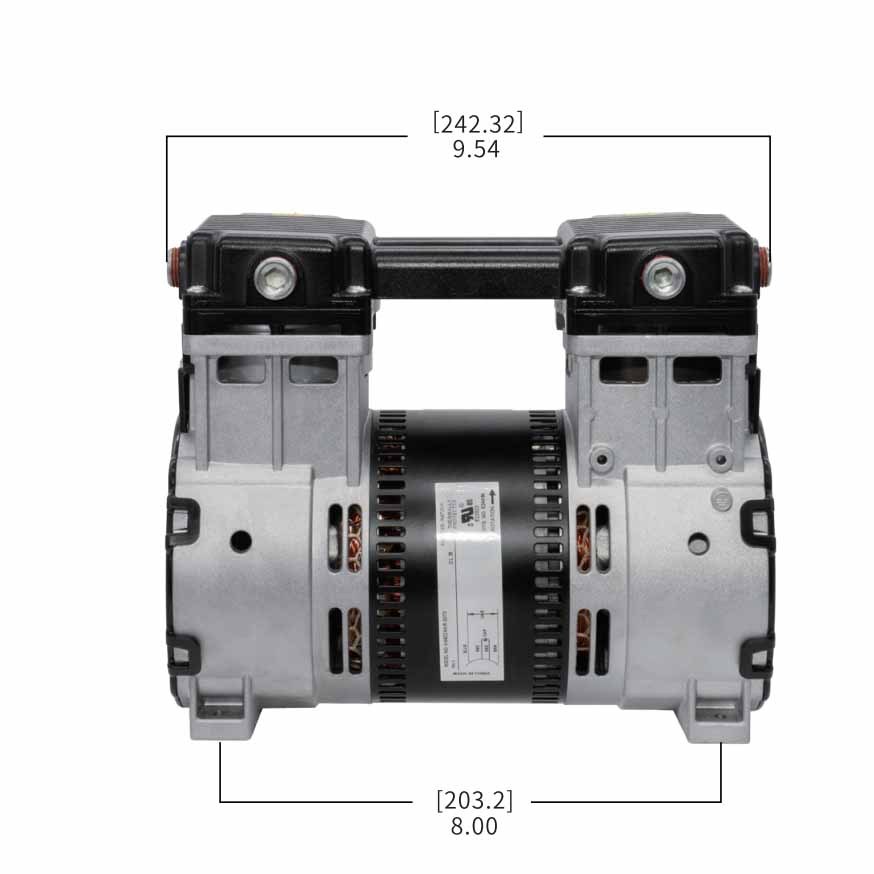

Installation dimensions
Performance attribute
| 88R552-P401-N472NX | ||
| Max Continuous Pressure | 175 PSI | 12 Bar |
Air Flow@10Bar | 1.59 CFM@50Hz 1.8CFM@60Hz | 45 LPM@50Hz 51 LPM@60Hz |
Amps@10Bar | 2.5@50Hz/2.8@60Hz | |
Rated Voltage | 220-230,50Hz/220-230,60Hz | |
Length | 9.54 Inch | 242.3 mm |
Width | 5.00 Inch | 126.9 mm |
Height | 8.09 Inch | 205.6 mm |
Weight | 21 lb | 9.5 Kg |
Product specifications
MODEL NAME: 88R552-P401-N472NX
· RPM: 1400@50Hz / 1650@60Hz
· kW: 0.53kW@50Hz / 0.62kW@60Hz
· APMS: 2.5A@50Hz / 2.8A@60Hz
· CAPACITOR: mfd. 17.5 / VOLTS 450
· Sound level: <70dB(A)
· Normal ambient: 0 C ~ +40 C
· Environment: Clean, dust free
· Certificate: CE

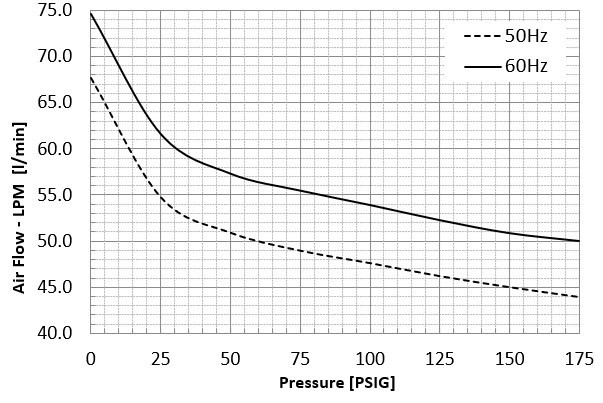

Product perforance - 220V
