All-in-one 50L/day, Independent LN2 Supply for Laboratory, University, NMR/IVF/Scientific

Name: All-in-one 50L/day, Independent LN2 Supply for Laboratory, University, NMR/IVF/Scientific
Brand: Scala
SKU: 18510343
Rating: 4.75 (10 reviews)

Categories	Liquid Nitrogen Generators
Brand	Scala
Model	LNS50W
LN2 Output	50-60 Liters per day
Color	White
Patented	Yes
OEM	Yes
Warranty	1 Year
Spare Parts	On request
FOB port	Shanghai, Ningbo, Guangzhou, Qingdao
Terms of Payment	T/T
Download
Update Time	May 7,2025

Contact Now

Detail Information

Product Introduction

LNS50W

Innovative on Site Liquid Nitrogen Solution for Laboratories

50
L/Day
100
L Dewar
<60
dBA
10''
HMI

Plug-and-play Independent Liquid Nitrogen Supply System

LNS50W is a leading liquid nitrogen generator developed by SCALA.

This cutting-edge model is the first compact machine with 50 liters per day liquid nitrogen output by integrating oil-free air compressor, PSA nitrogen generator, GM cryogenic cooler and 100 liter volume dewar into one unit. The system is controlled through high quality 10'' HMI powered by Siemens PLC. It operates automatically with minimal installation steps, delivering totally independent on-site liquid nitrogen supply.

Product Specifications

Machine Model: LNS50W

Liquid Nitrogen Output	50-60 liters per day
Liquid Nitrogen Purity	99.5-99.9%
In-built Dewar Volume	100 Liters
Air Compressor	Oil-free
Nitrogen Generator Type	PSA Nitrogen Generator
Cryo-cooler Type	Gifford-McMahon (GM) cryocooler
Cooling Type	Water Cooled

Voltage	380V/3Ph/50-60Hz
Controller	PLC
PLC Brand	Siemens
Screen	Color 10'' HMI
Noise	<60 dB(a) @ 1 meter
Automatic Running	Yes
Automatic Standby	Yes
Liquid Nitrogen Dispensing	Touch Screen Dispensing
WiFi Connection	Yes
Remote Control	Yes
Lot Function	Yes

Dimension	130x75x175cm
Weight	600kg
Cooling Water Requirement	Yes
Place of Origin	Hangzhou, China
Mobility	Yes
Lead Time	TBD
Machinery test report	Yes
Quality Assurance	Yes

Product Details

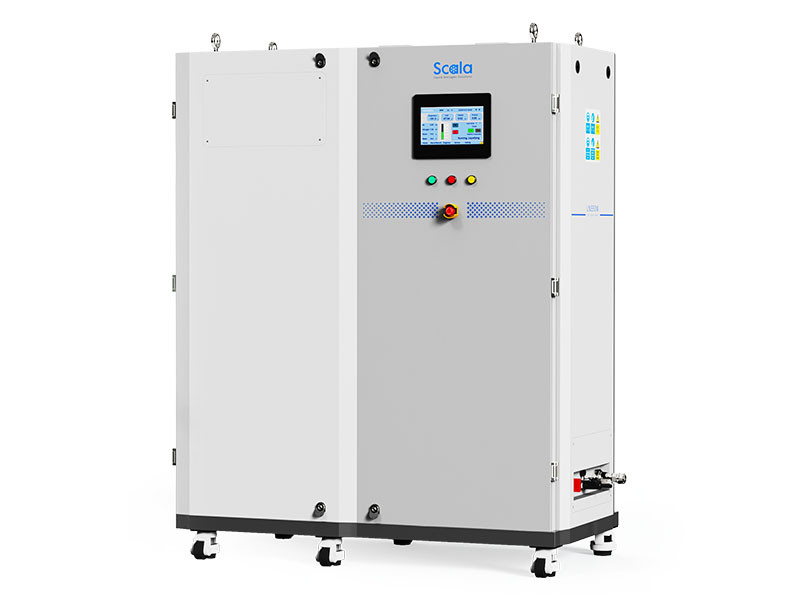

Modern designed liquid nitrogen generator 50L/day output

Design Philosophy

Modern Industrial Appearance: Simple and clean white color scheme built with sturdy composite material, providing protection and durability.

Interface and Controls: 10'' colored WEiNViEW^® HMI with power indicator and emergency stop designed for easy access and operation.

Mobility: Mounted on FOOT MASTER^® castors allows easy movement, facilitating its relocation as per requirements.

Ergonomic Reference: Human-centric design considerations for interfaces or access points with 1700mm height.

Lifting Holes: Provide secure anchor points to prevent slippage or imbalance during tranporation and installation.

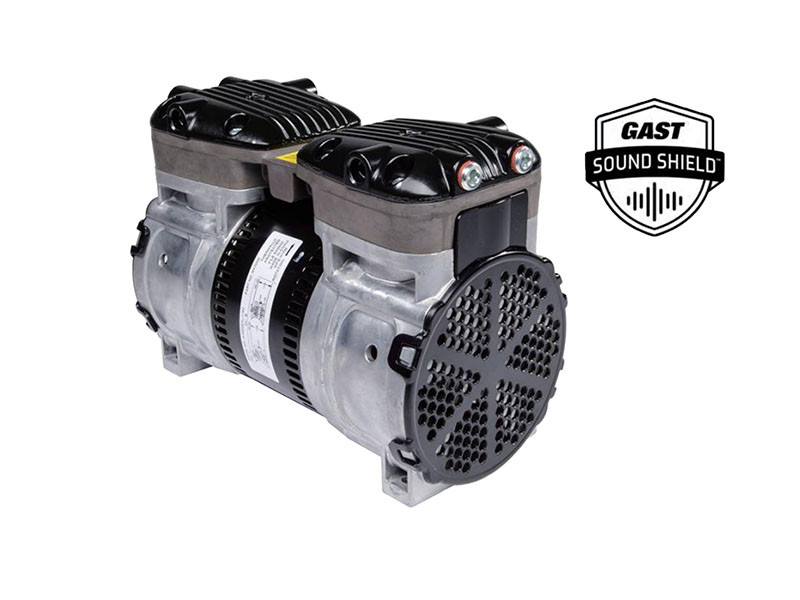

Oil-free Air Compressor

100% Contaminant-Free Air: Critical for food & beverage, pharmaceuticals, electronics, and medical applications.

Low Noise: Typically reduces noise by 10–30 dB(A), ideal for compliance with workplace noise regulations.

Lower Maintenance: Shields the compressor from moistur, dust, and extreme temperatures, prolonging lifespan.

Environmental Benefits: Significantly avoids hazardous waste handling and environmental contamination risks.

Scala liquid nitrogen generator oil-free air compressor

Cryo-cooler, nitrogen liquefier, liquid nitrogen system

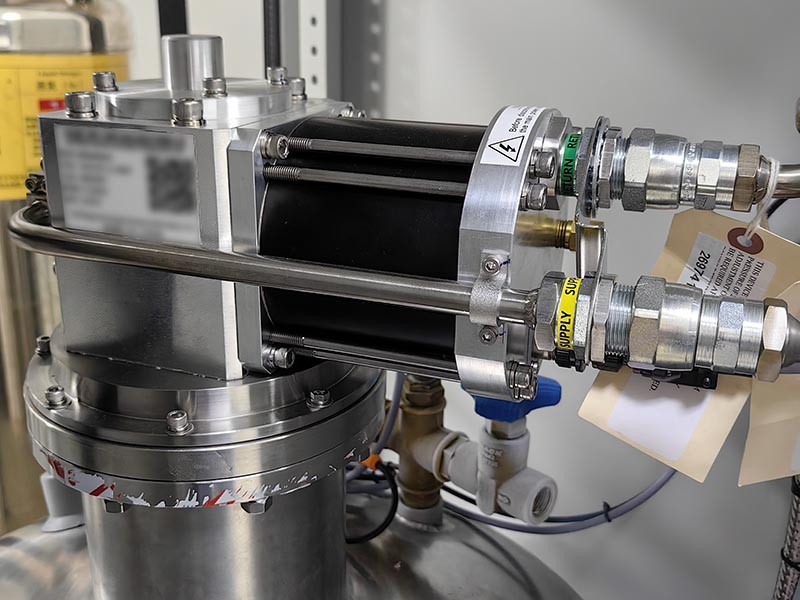

Gifford-McMahon (GM) Cryocooler

High Efficiency Refrigeration: High thermodynamic efficiency makes it quickly reaches to the 77K low temperature for nitrogen gas liquefication.

Compact and Portable: The cold head is designed compact, occupying small space, which allows Scala liquid nitrogen generator overall in small footprint.

Reliable Operation: With mature technology for decades, it has high reliability and can be used in industrial and scientific research scenarios while keep stable performance.

Convenient Maintenance: Phase - adjusting device in the cryocooler reduces refrigeration performance caused sealing ring which greatly extends the maintenance cycle and service life.

CE & UL Certified: GM cryocoolers have been proved reliable and safety throughout the world

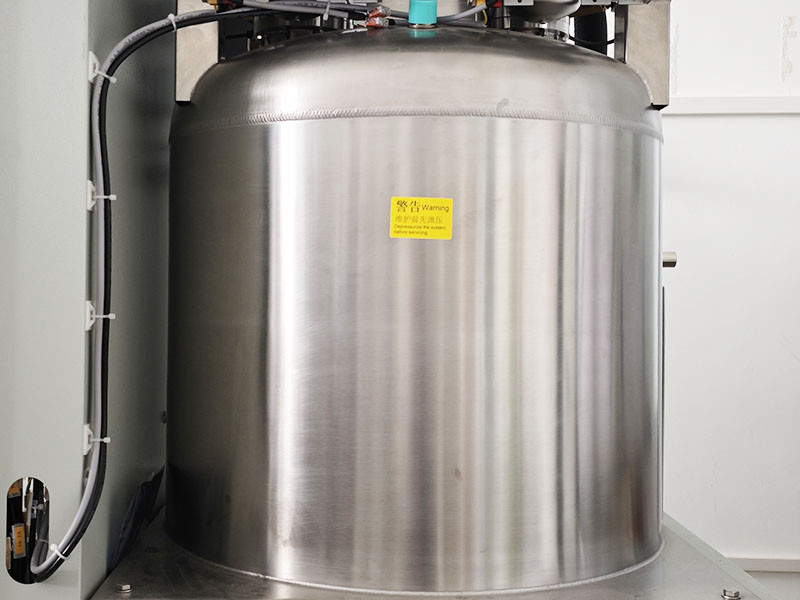

Vacuum Insulated Dewar

Mounted Struture: The vertical dewar mounted by cryocooler at the top significantly improves the liquefication performance.

Lower LN₂ Vaporization: The cold head at the top keeps the liquid nitrogen at liquefication temperature, reducing the waste caused by evaporation.

Maintenance Free: Lifespan more than 10 years, which means no need for replacement throughout its entire life cycle.

Super Large Volume: Built-in 100 liters volume dewar that can meet most using senarios without external LN₂ tanks.
